120A Battery Connector Quick Connect Battery Modular Power Connectors Quick Disconnect (Blue)
Product details
| Management number | 233785485 | Release Date | 2026/06/27 | List Price | US$9.02 | Model Number | 233785485 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Package included: all is included in the first picture.Material: Silver Copper.Rated currents (Amps): 120 A.Rated Voltage Rating: 600 V.Contact Barrel Wire Size [AWG]: 2/4 / 6AWG (1 3.3 mm² - 21.1 / 33.6mm²). Medium contact resistance (micro ohm): 140.Isolation resistant to test voltage (AC / DC Volts): 2200V. Contact retention force ( lbf): 100lbf
- No load (contact / disconnect cycles): At 10,000.Under load (Hot Plug 250 cycles @ 120V) .Minimum insertion force (pounds): 20lbf.Operating temperature ° C: -20 ° to 105 °. Flammability class of the housing material: UL 94-V0.Good material: the product is made from good materials, the continuity is perfect, the resistance to bad environment
- Auto-erasure makes the surface of the push needle clean, the low contact resistance is reliable. The connector can be used in a strong shock environment and with the fast action function in a large electric current
- Stainless steel shrapnel can ensure constant contact stress and overcomes intermittent overload in case of frequent splicing and interruption

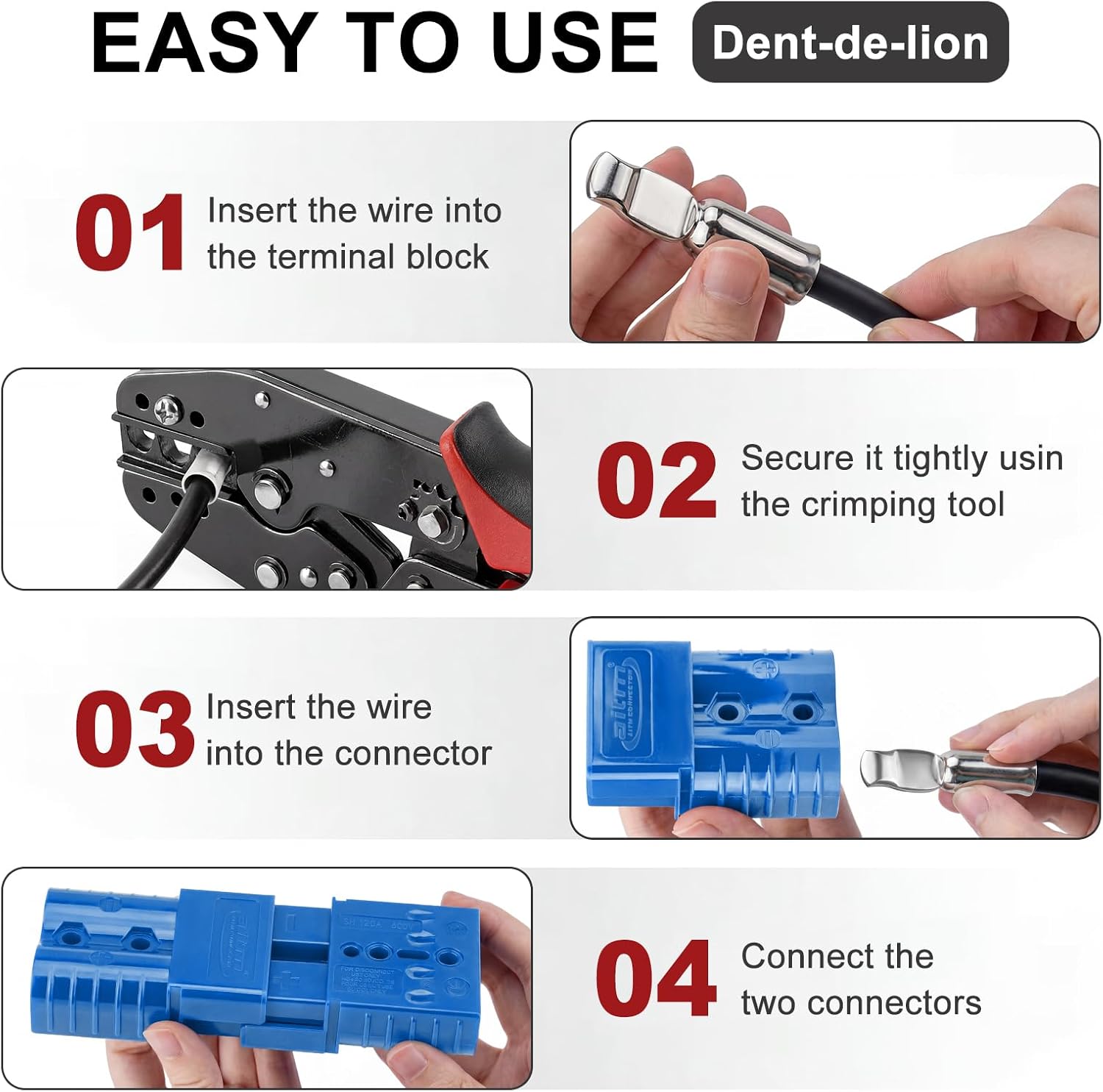

- Easy to use: Regardless of the plug or plug, inserting into the same color is a pair, easy and quick to splice and interrupt
| UPC | 787477487236 |
|---|---|
| ASIN | B07HKPD3SX |
| Color | Blue |
| Model | blue 120 |
| Terminal | Screw Terminal |
| Brand Name | Dent-de-lion |
| Part Number | blue 120 |
| Manufacturer | Dent-de-lion |
| Material Type | Copper |
| Connector Type | Quick Disconnect |
| Maximum Voltage | 600 Volts |
| Contact Material | Stainless Steel |
| Specification Met | UL |
| Temperature Rating | 105 degree celsius |
| Insulation Material Type | Plastic |
